NONDESTRUCTIVE TEST MANUAL


BOEING DOCUMENT D6-37239
TO：All holders of Nondestructive Test Manual, Boeing Document D6-37239.
Revision ninety-two, dated August 5, 2007, to the 737 Nondestructive Test Manual
is attached. This manual is revised/changed on a four month cycle.
波音737 NDT 手冊組成（文件號D6－37239）

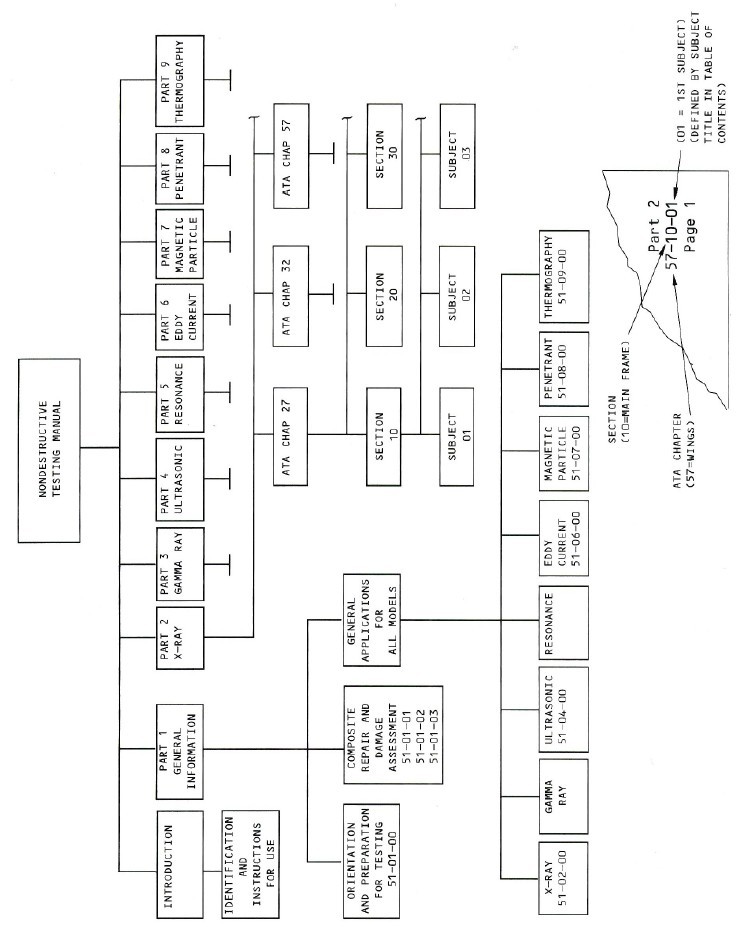

1).介紹
（1）手冊概述
（2）手冊的組織
（3）章節號
（4）有效頁
（5）技術支持?jǐn)?shù)據
（6）出版變更要求
2).Part 1 通用部分
（1）51-00-00 至51-00-01 縮略語、飛機站位等基礎數據；
（2）51-01-00 人員資格、方法選擇、方法比較、設備制造廠家信息等等；
（3） 51-01-01 至51-00-03 復合材料的檢查；
（4） 51-01-04 參考試塊的鉚釘安裝；
(5） 51-02 至51-06 各種無損檢測方法的概述



3） 波音NDT 手冊中的渦流檢測程序?qū)嵗��?br /> 1.PURPOSE
A. Use this procedure to do an inspection for surface cracks in aluminum parts.
B. This procedure uses an impedance plane display instrument.
C. Part 6, 51-00-00, Fig. 4 is an alternative inspection procedure.
2 Equipment
A. General
(1) Use inspection equipment that can be calibrated on the reference standard
as specified in paragraph 4.
(2) Refer to Part 1, 51-01-00, for data about the equipment manufacturers.
B. Instrument
(1) Use an eddy current instrument that:
(a) Has an impedance plane display.
(b) Operates at a frequency range of 50 kHz to 500 kHz.
(2)The instruments specified below were used to prepare this procedure.
(a) Phasec 1.1; Hocking Krautkramer.
(b) Nortec NDT-19e; Staveley Instruments.
(c) MIZ-22; Zetec, Inc.
2、探頭Probes
(1) Use a probe that:
(a) Operates at a frequency in the range of 50 kHz to 500 kHz.
(b) Has the configuration shown in Detail I.
(C) Can satisfactorily do the angularity check as shown in Detail II.
(d)Can satisfactorily do the probe shield test of Detail III. This is necessary
if the inspection area is near adjacent structure to make sure the adjacent structure
will not change the signals.
NOTE: Shielded probes are recommended.
3、試塊Reference Standards
(1) Use reference standards 126, 188A, 189 or NDT1048. See Details IV thru VII
for data about the reference standards.
(2) Other reference standards can be used if they are equivalent to those shown
in Detail IV thru VII.
E. 輔助工具Special Tools
(1) Use a nonconductive circle template as shown in Detail IX to help examine
near the edges of parts for cracks.
(2) Use a nonconductive straightedge as shown in Details X and XI to help examine
the area around flush head fasteners for cracks.
NOTE: The circle template and straightedge help to keep the probe a constant
distance from a fastener head or structural edge. The signal will slowly increase
when the probe gets closer to an edge of a part.
三、檢查準備Preparation for Inspection
A. Get access to the inspection area.
B. Remove loose paint, dirt and sealant from the surface of the inspection area.
